A compact corded trim router for edge work

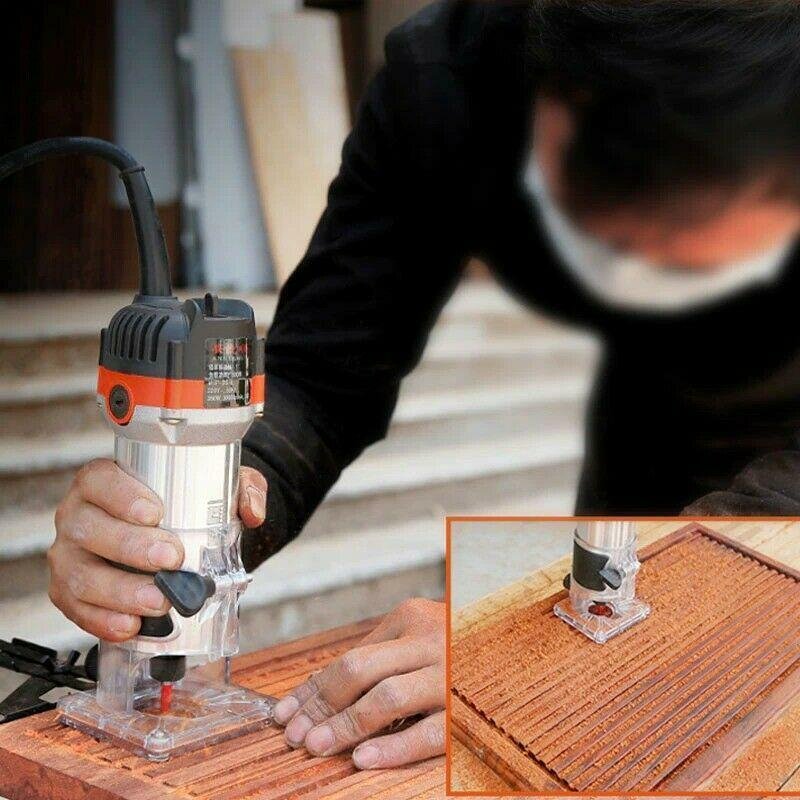

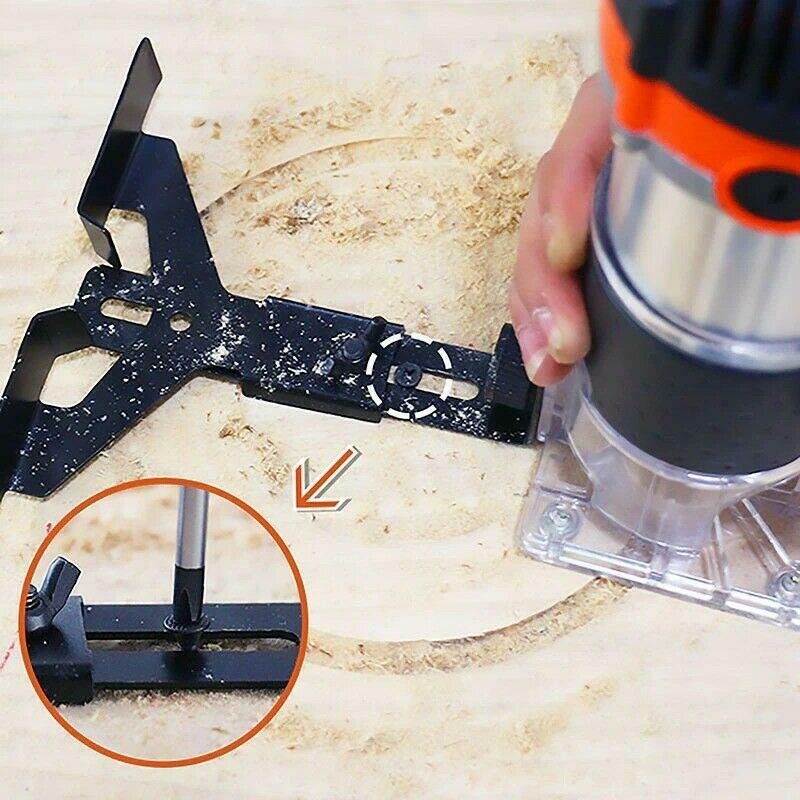

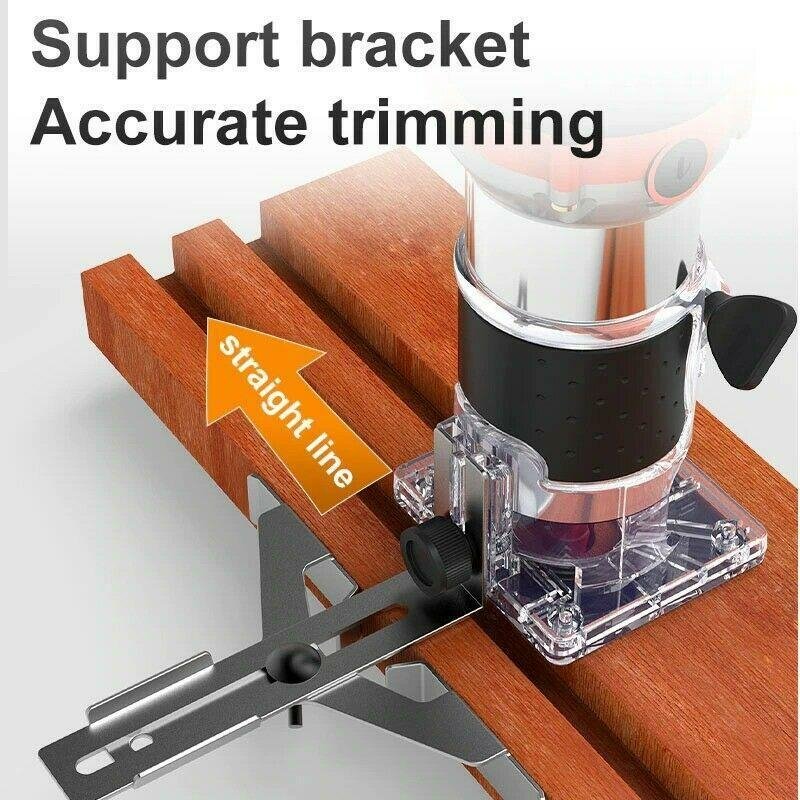

This is a small single-handed router of the kind used to flush-trim laminate, round over or chamfer an edge, and cut shallow grooves. It has a clear plastic base you can see the bit through, a knurled ring that sets the cutting depth, and a straight-edge guide bracket for running a groove parallel to an edge. The maker's kit photograph shows it supplied with one straight bit with a 1/4 in shank, the straight guide, a trimming guide, a wrench and a spare pair of carbon brushes.
Read this before you buy. The rating plate in the maker's photographs of this tool reads 220 V, 50/60 Hz, 720 W. Household mains in the United States is 120 V. We have not yet confirmed which voltage and plug ships to a US address, and we will not describe this tool as a 120 V tool until we have. If your mains is 120 V, wait for this page to say so before ordering.
What the maker states
In the box, per the maker's kit photograph
- The router
- One 1/4 in shank straight bit
- Straight-line guide bracket
- Trimming guide
- Wrench
- One spare pair of carbon brushes
Using a trim router safely
- Eye and hearing protection every time. A bit turning at 30,000 rpm throws chips hard, and this class of tool is loud.
- Unplug it to change a bit or adjust the depth. Seat the bit shank fully in the collet and tighten with the wrench before plugging back in.
- Clamp the work. Never hold a small piece by hand while routing it.
- Let it reach full speed before it touches the wood, and feed against the rotation of the bit. Feeding with the rotation makes the tool run away from you.
- Take shallow passes. A small router does its best work removing a little at a time.
- Keep the cord behind you and away from the bit.
- It is not for use on metal, and it is not a saw.
What changed on this page. This product was listed under a title that called it a saw blade. It is a trim router. We removed a promotional description with motor, cooling and precision claims we could not verify, a maker's image carrying a water-and-dust claim a mains-powered tool cannot support, and images carrying another company's brand mark. What is left is what the maker's own photographs and rating plate show, and the open voltage question above.
